2.5 Inch Auto Spare Parts Stainless Steel V-Band Clamp With Male
And Female Flange
Product Detalls:
Stainless steel V-shaped clamps are often used for the installation
of modified vehicles, and the installation is simple. Inventory is
available all year round. Some specifications are in stock. If
there is an urgent need, please contact us by phone or email.
Tel/wechat: +86 18931182030
Mail: export(at )ypmachinery.com
Each assembly includes one
1. t-bolt style clamp + two SS304 flanges
2. Quick installation clamp + two SS304 flanges
For details, please contact us by mail, we will give you detailed
product information and prices.
product parameters:
| size(inch) | Flange inner diameter(mm) | Outer diameter of exhaust pipe(mm) | Material |
| 1.5 | 38.9 | 38.1 | SS304 |
| 1.75 | 45.3 | 44.5 | SS304 |
| 2 | 51.6 | 50.8 | SS304 |
| 2.25 | 57.9 | 57.1 | SS304 |
| 2.5 | 64.3 | 63.5 | SS304 |
| 2.75 | 70.6 | 69.8 | SS304 |
| 3 | 77 | 76.2 | SS304 |
| 3.25 | 83.3 | 82.5 | SS304 |
| 3.5 | 89.7 | 88.9 | SS304 |
| 3.75 | 96.1 | 95.6 | SS304 |
| 4 | 102.4 | 101.6 | SS304 |
| 4.5 | 115.1 | 114.3 | SS304 |
| 5 | 127.8 | 127 | SS304 |
| 6 | 153.2 | 152.4 | SS304 |
Features:
Rich configuration on both T Bolt and Nut and match various
application even critical like hih temperature, high vibration.
1. Whole stainless steel and resistant to corrosion;
2. Positive sealing integrity;
3. Easy assembly and disassembly;
4. High strength and reliable;
5. Good welding and physical performance .Outer diameter of exhaust
pipe
6. Bending by special technology means, it has a unique
anti-loosening spring design.
7. After the inner ring is tightened, the hose is rounded to ensure
that the hose can hold the hose tightly under elastic deformation
and various complex working conditions, with strong sealing.
Application:
The V-Band Clamps/Couplings offer effective fastening solutions in
exhaust systems,including filter frame, turbocharging system,
exhaust system and industrial application which need flange
connection. remove intercooler systems and turbo parts, such as
charge piping, intake pipes, diesel engines, turbochargers, and
heavy-duty exhaust systems.Etc

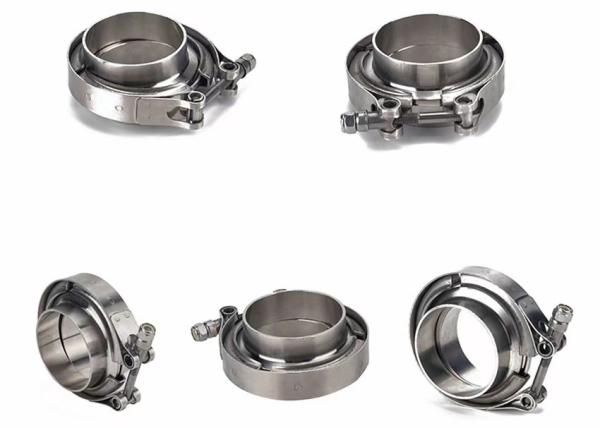

Product Picture:
