Heavy Duty Pipe Clamps V Band Exhaust Clamps Flange Auto Spare
Parts Exhaust Clamp
Product Detalls:
The v band pipe clamp adopts high quality stainless steel or
galvanized thin steel belt and v-ring sealing connection.clamp
overall polishing, bright without burr.Special technology bending
forming, with a unique anti-loose spring design, and various
complex working conditions can be tight hose, sealing is very
strong.It can be adjusted slightly, so that the flange and flange
and seal between the adjustment and alignment of uniform force hold
tight, light and fast body.
It can adjust slightly to make the adjustment and alignment between
flange and flange and seal even and tightly, so that the shape is

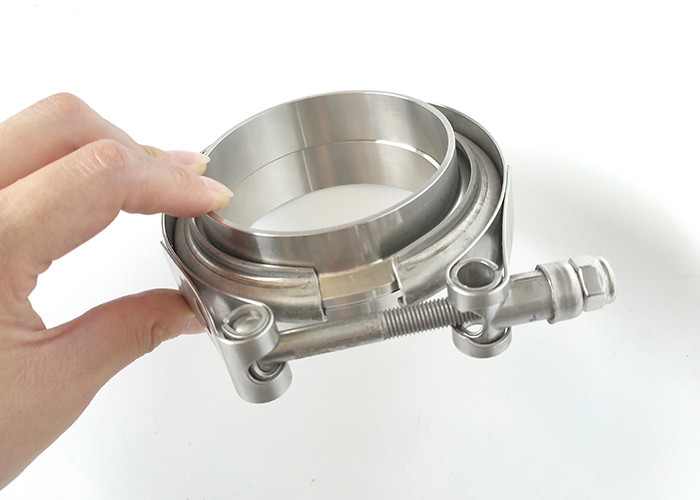

light and fast. V band couplings are mechanical connecting clamps
consisting of two or more V insert sections welded inside a strong
and adjustable clamp.V-Band Clamps+Flange makes it easy to install
and remove exhaust systems and turbo parts, such as downpipes, B
Pipes and the like. Great for racers and tuners, these clamps make
it easy to remove parts to gain access to vital componenets easily
as there are no hard to reach bolts or special tools needed. Simply
undo the clamp and you can remove the component easily.
| size(inch) | Flange inner diameter(mm) | Outer diameter of exhaust pipe(mm) | Material |
| 1.5 | 38.9 | 38.1 | SS304 |
| 1.75 | 45.3 | 44.5 | SS304 |
| 2 | 51.6 | 50.8 | SS304 |
| 2.25 | 57.9 | 57.1 | SS304 |
| 2.5 | 64.3 | 63.5 | SS304 |
| 2.75 | 70.6 | 69.8 | SS304 |
| 3 | 77 | 76.2 | SS304 |
| 3.25 | 83.3 | 82.5 | SS304 |
| 3.5 | 89.7 | 88.9 | SS304 |
| 3.75 | 96.1 | 95.6 | SS304 |
| 4 | 102.4 | 101.6 | SS304 |
| 4.5 | 115.1 | 114.3 | SS304 |
| 5 | 127.8 | 127 | SS304 |
| 6 | 153.2 | 152.4 | SS304 |
Features:
Rich configuration on both T Bolt and Nut and match various
application even critical like hih temperature, high vibration.
1. Whole stainless steel and resistant to corrosion;
2. Positive sealing integrity;
3. Easy assembly and disassembly;
4. High strength and reliable;
5. Good welding and physical performance .Outer diameter of exhaust
pipe
6. Bending by special technology means, it has a unique
anti-loosening spring design.
7. After the inner ring is tightened, the hose is rounded to ensure
that the hose can hold the hose tightly under elastic deformation
and various complex working conditions, with strong sealing.
Application:
The V-Band Clamps/Couplings offer effective fastening solutions in
exhaust systems,including filter frame, turbocharging system,
exhaust system and industrial application which need flange
connection. remove intercooler systems and turbo parts, such as
charge piping, intake pipes, diesel engines, turbochargers, and
heavy-duty exhaust systems.Etc
