Exhaust Flex Connector Auto Spare Parts Auto Muffler Flexible
Exhaust Pipe With interlock
Product Detail:

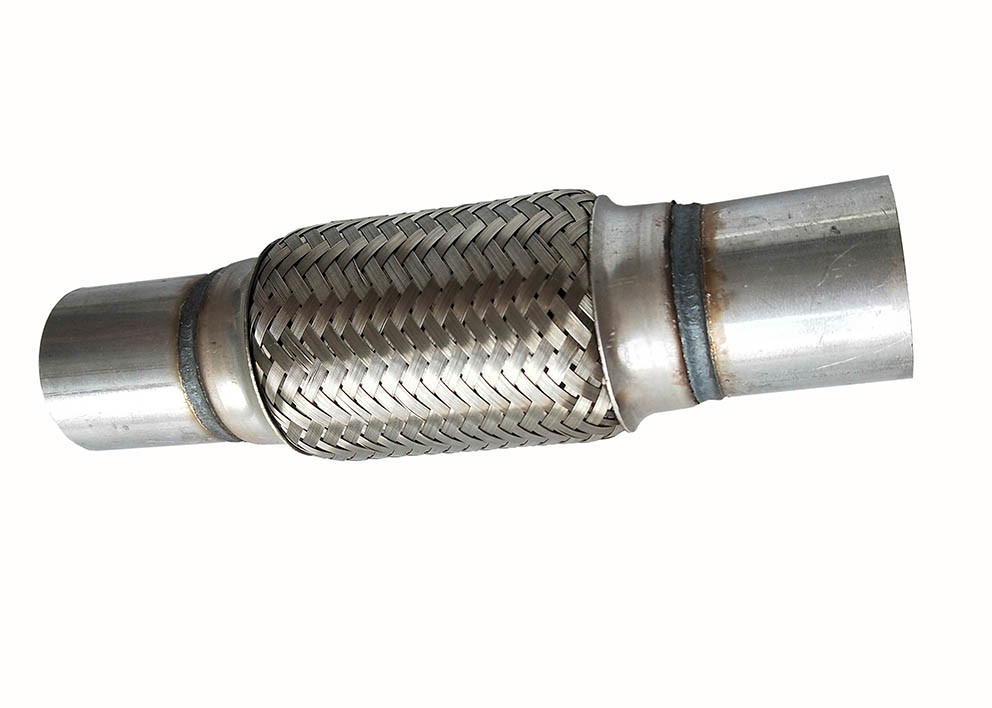

The exhaust flexible pipe material is stainless steel,the outer
structure of the exhaust pipe of this type of automobile adopts the
braided net, and the inner part with interlock.The internal
interlock structure can adjust the resistance of the exhaust pipe
due to the drastic changes of the car.The material of the exhaust
pipe can be made of different grades of stainless steel according
to customer requirements.
| Part No. | Inner Diameter(D) | Length(L) |
| inch | mm | inch | mm |
M1 | 1-3/4’’ | 45 | 4’’ | 102 |
| M2 | 6’’ | 152 |
| M3 | 7’’ | 178 |
| M4 | 8’’ | 203 |
| M5 | 9’’ | 230 |
| M6 | 10’’ | 254 |
| M7 | 11’’ | 280 |
| M8 | 12’’ | 305 |
| S1 | 2’’ | 50.8 | 4’’ | 102 |
| S2 | 6’’ | 152 |
| S3 | 8’’ | 203 |
| S4 | 9’’ | 230 |
| S5 | 10’’ | 254 |
| S6 | 11’’ | 280 |
| S7 | 12’’ | 305 |
| V1 | 2-1/4’’ | 57.2 | 4’’ | 102 |
| V2 | 6’’ | 152 |
| V3 | 8’’ | 203 |
| V4 | 9’’ | 230 |
| V5 | 10’’ | 254 |
| V6 | 11’’ | 280 |
| V7 | 12’’ | 305 |
| P1 | 2-1/2’’ | 63.5 | 4’’ | 102 |
| P2 | 6’’ | 152 |
| P3 | 8’’ | 203 |
| P4 | 9’’ | 230 |
| P5 | 10’’ | 254 |
| P6 | 11’’ | 280 |
| P7 | 12’’ | 305 |
| Part No. | Inner Diameter(D) | Length(L) |
| inch | mm | inch | mm |
| U1 | 3’’ |
76.2 | 4’’ | 102 |
| U2 | 6’’ | 152 |
| U3 | 8’’ | 203 |
| U4 | 10’’ | 254 |
| U5 | 12’’ | 305 |
| T1 | | 42 | | 120 |
| T2 | | 165 |
| T3 | | 180 |
| L1 | | 50 | | 120 |
| L2 | | 165 |
| G1 | | 55 | | 120 |
| G2 | | 165 |
| G3 | | 180 |
| G4 | | 200 |
| G5 | | 250 |
| F1 | | 60 | | 160 |
| F2 | | 200 |
| F3 | | 240 |
| Y1 | | 65 | | 150 |
| Y2 | | 200 |
| I1 | |
70 | | 100 |
| I2 | | 120 |
| I3 | | 150 |
| I4 | | 200
|
Feature:
exhaust flexible pipe can reduce vibration and noise, facilitate
installation and prolong the life of exhaust silencing system. High
temperature part of engine exhaust manifold. Absorbing and
compensating thermal expansion and contraction of exhaust manifold
to prevent rigid parts from cracking.
We also produce some like this :factory price exhaust system steel
auto exhaust flexible pipe/ exhaust bellows/ flex hose clamp
(1) exhaust flexible pipe, automobile exhaust system component
(2) installed between engine and muffler
(3) absorbs muffler pipe thermal expansion
(4) used to decrease engine noise and vibration
(5) reduces air pollution
(6) made of stainless steel(main body), single layer and double
layer are available
(7) Construction: outer braid + middle double bellows + inner braid
+Aluminized trumpet mouth+Aluminized extension necks on both sides
(8) Environmentally friendly
(9) Size, diameter and length can be produced as requirements
