quick lock clamps quick release flange pipe clamp for dust
collection fume extraction vacuum conveying system

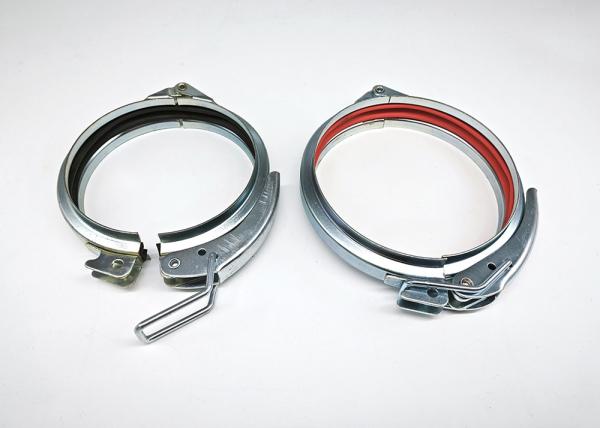

Introduction of quick release flange pipe clamp:
The duct clamp is a component that uses one kind of pipe special
material to hold or hoop another kind of pipe material. It belongs
to hardware fasteners. There are two types of clamps, one is the
ductwork pipe clamps,and the other is the ventilation pipe clamps
Diameter:80-600mm
Material: stainless steel 304, Carbon Steel
Thickness: 0.8-1.0mm
Specification of Quick Release flange Pipe Clamps
DIAMETER (MM) | PRODUCT CODE | A (MM) | H (MM) | THICKNESS (MM) |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG160 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG225 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 330 | BMG330 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Application of duct clamps:
- Joinery wood waste extraction systems and the conveying of
powders
- Waste products
- Particle & fume extraction
Package of duct clamps:
About our company:
We are the leading manufacturer and develop a series of round duct
& fittings for industy dust collection system of ship and buiding .
At the same time, we also supply modular ducting for ventilation
system.
Products for Dust collection system including: pressed bend, pneumatic sliding damper, manual sliding damper
,duct clamps, wide/slim pull rings and so on
Products for Ventilation system products including: half elbow, duct reducer, pressed collar saddle, Tee piece and so
on.
Our advantage: factory price, fast delivery and good service.
